Custom Aluminum Alloy Fabrication for Medical Devices: The Ultimate Technical Guide for OEMs

In the high-stakes world of medical device manufacturing, material selection and fabrication precision can directly impact patient outcomes and institutional safety. Medical device Original Equipment Manufacturers (OEMs) face a complex matrix of engineering requirements: devices must be lightweight yet structurally robust, highly corrosion-resistant yet bio-compatible, and manufactured to sub-micron tolerances while remaining commercially viable.

Among the materials available to meet these rigid benchmarks, customized aluminum alloys have emerged as an industry standard. From the structural frames of MRI machines and surgical robotics to the delicate housings of handheld diagnostic tools and orthopedic instruments, precision-tailored aluminum components form the backbone of modern healthcare infrastructure.

As an advanced industrial manufacturing facility specializing in custom aluminum alloy fabrication, we have developed this comprehensive technical guide. It outlines the specific alloys, machining protocols, surface finishes, and quality compliance frameworks required to transform raw aluminum into medical-grade components.

Part 1: Why Aluminum? The Core Advantages in Medical Applications

Before diving into specific alloys, it is essential to understand why aluminum is favored over alternative materials like stainless steel, titanium, or high-performance polymers in many medical device blueprints.

1. Unmatched Strength-to-Weight Ratio

Medical equipment frequently falls into two categories: large, stationary diagnostic systems that require structural structural integrity without excessive weight floor-loading, and mobile clinical carts, surgical tools, or wearables that require effortless maneuverability by clinical staff. Aluminum delivers mechanical strength comparable to mild steel at roughly one-third of the density. This weight reduction directly enhances ergonomics for handheld instruments and minimizes structural stress on the automated joints of surgical robotics.

2. Superior Thermal and Electrical Conductivity

High-radiation diagnostic equipment, laser surgical systems, and modern laboratory analyzers generate substantial localized heat during continuous operation. Excess thermal energy can degrade delicate sensor arrays and cause internal electronic drift. Aluminum alloys possess exceptional thermal conductivity, allowing engineers to design efficient, complex, integrated heat sinks and cooling jackets. Furthermore, its natural electrical conductivity provides vital Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) shielding, protecting sensitive patient data logs from electrical noise.

3. Exceptional Machining Versatility and Dimensional Stability

Medical device geometries are becoming increasingly intricate to accommodate downsized electronic footprints and ergonomic profiles. Compared to hard metals like titanium or stainless steel, aluminum exhibits excellent machinability. It allows high-speed CNC milling and turning machines to run at peak material removal rates without causing excessive tool wear. This excellent machinability translates to exceptional dimensional stability, permitting the reliable duplication of complex features with zero mechanical warping.

Part 2: Selecting the Right Medical-Grade Aluminum Alloys

Not all aluminum is created equal. The international standards governing medical manufacturing require specific chemical configurations to handle sterilization exposure and mechanical loads. Below are the primary aluminum grades used in custom medical component manufacturing.

Aluminum GradeCore Alloying ElementsKey Mechanical CharacteristicsPrimary Medical Device Applications6061-T6Magnesium, SiliconExcellent corrosion resistance, highly weldable, superior versatile strength.Structural frames, imaging housings, surgical cart chassis, laboratory base plates.7075-T6Zinc, MagnesiumUltra-high yield strength (comparable to steel), high fatigue resistance.High-stress surgical robotics joints, orthopedic instruments, prosthetic load-bearing parts.5052-H32MagnesiumHighly formable, superior resistance to marine/alkaline corrosion.Sheet metal enclosures, control panel backplates, fluid storage tanks.6063Magnesium, SiliconHigh surface finish aesthetic capability, excellent extrusion performance.Ergonomic handles, support rails, medical monitor mounting arms, lighting tracks.

Deep-Dive: 6061-T6 vs. 7075-T6 in Clinical Hardware

• 6061-T6 (The Industry Workhorse): This grade is the most widely specified alloy for medical customization. Its balanced combination of weldability, corrosion resistance, and high structural strength makes it ideal for components exposed to frequent chemical sanitization. It acts as the default material for structural frameworks and protective enclosures.

• 7075-T6 (The High-Strength Specialist): When a component is subjected to severe mechanical loads, cyclical stress, or requires a minimal cross-sectional profile without bending, 7075-T6 is chosen. Its high zinc content gives it immense tensile strength. It is frequently applied in mechanical gears, robotic actuators, and orthopedic tools that experience repetitive high torque during procedures.

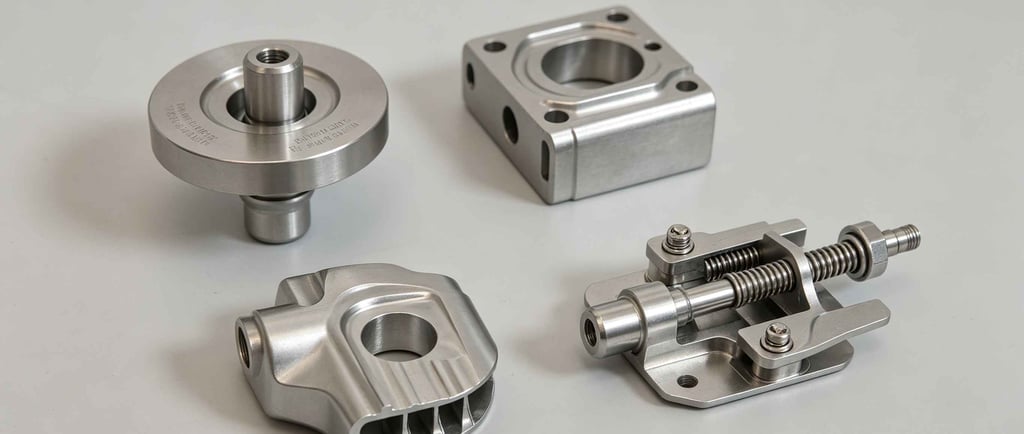

Part 3: Precision Customization Technologies for Medical Aluminum

Transforming raw aluminum bars or sheet stock into clinical-grade components requires specialized manufacturing infrastructure. A qualified custom factory utilizes several core fabrication layers.

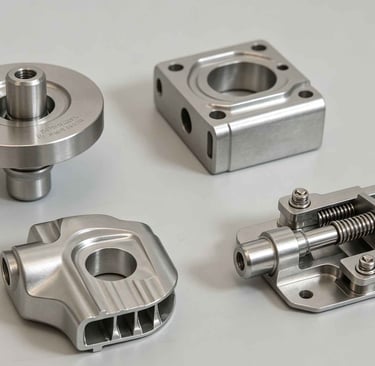

1. Multi-Axis Precision CNC Machining

The core of medical customization relies on multi-axis (3-axis, 4-axis, and continuous 5-axis) CNC milling and turning centers. 5-axis CNC machining enables the fabrication of complex organic shapes and highly intricate contours in a single operational setup. This capability eliminates stacking tolerances caused by moving parts across multiple machines, ensuring that complex parts—such as a curved housing for a portable ultrasound probe—maintain absolute dimensional accuracy.

2. Micro-Machining and Ultra-Tight Tolerances

Many internal diagnostic components and fluidic blocks feature micro-scale channels or micro-threaded holes. Advanced custom factories can achieve tight tolerances down to ±0.005 mm (or ±5 microns). Maintaining this level of accuracy ensures that mating components connect seamlessly, preventing localized mechanical friction and ensuring fluid-tight seals in analytical liquid distribution manifolds.

3. High-Precision Sheet Metal Fabrication

For larger medical infrastructure, such as patient monitoring enclosures, diagnostic control panel backplates, and hospital cart frames, custom sheet metal fabrication is essential. Utilizing precision laser cutting, CNC press brake bending, and robotic TIG/MIG welding allows factories to produce lightweight, rigid metal enclosures that protect internal electronic components from external impacts and environmental dust.

Part 4: Critical Surface Finishing and Sterilization Compatibility

Raw machined aluminum is inherently reactive; when exposed to oxygen, it quickly forms a thin, natural oxide film. While this film offers baseline corrosion resistance, it is insufficient for clinical environments. Medical components must endure aggressive cleaning regimens, including autoclaving (high-pressure steam), gamma radiation, and harsh chemical wiping with isopropyl alcohol, hydrogen peroxide, or bleach. Custom surface treatment is required to ensure survival under these conditions.

1. Type II and Type III Anodizing (The Clinical Shield)

Anodizing is an electrochemical process that converts the aluminum surface into a durable aluminum oxide ceramic layer.

• Type II (Sulfuric Anodizing): Provides excellent corrosion resistance and allows for color-coding customization. This is highly useful for surgical tools, enabling operating room staff to quickly identify tool sizes based on color.

• Type III (Hardcoat Anodizing): Creates a much thicker, ultra-dense ceramic shell on the part surface. Hardcoat anodizing provides exceptional wear resistance and electrical insulation. It is specified for sliding mechanical rails, high-wear components, and parts that undergo constant sterilization cycles.

2. Chemical Conversion Coatings (Alodine / Film Chromate)

For internal electronic chassis parts that require corrosion protection but must maintain excellent electrical conductivity for grounding and EMI/RFI shielding, chemical conversion coatings are used. This process protects the aluminum surface without altering its electrical characteristics or dimensional tolerances.

3. Electropolishing and Advanced Passivation

To minimize surface porosity where micro-bacteria could settle, machined components undergo specialized deburring, bead blasting, or electropolishing. These techniques produce an ultra-smooth, high-purity surface that is easy to sanitize and limits biological adhesion.

Part 5: Quality Assurance, Traceability, and Regulatory Compliance

In medical manufacturing, quality assurance is as critical as the machining process itself. Components must comply with strict international regulatory standards to ensure complete product safety and traceability.

1. ISO 13485 Compliance Framework

A premier custom aluminum factory should align its quality management systems with ISO 13485 standards (Medical Devices – Quality Management Systems). This compliance mandates detailed documentation at every phase of production, ensuring that manufacturing conditions are stable, verifiable, and strictly controlled.

2. Full Material Traceability and MTRs

Every batch of customized medical aluminum components must be traceable back to its original raw ingot pour. Factories provide official Material Test Reports (MTRs) confirming the exact chemical composition (percentages of Magnesium, Silicon, Zinc, etc.) and mechanical properties (tensile strength, yield strength, hardness) of the raw metal. This documentation ensures that no unverified or inferior scrap metals enter the clean production stream.

3. Advanced CMM Metrology and Inspection

To guarantee that custom parts match the engineering CAD models exactly, finished components undergo comprehensive testing using automated Coordinate Measuring Machines (CMM), optical profile projectors, and non-destructive testing (NDT) systems. Every critical dimension is measured and logged into an official inspection report supplied directly to the OEM client.

Part 6: Selecting Your Custom Aluminum Fabrication Partner

When selecting an aluminum customization factory for long-term medical OEM contracts, procurement officers must look beyond simple unit pricing. A reliable manufacturing partner must fulfill specific operational requirements:

• Design for Manufacturing (DFM) Support: The factory's engineering team should review your blueprints to optimize tool path routing, suggest cost-effective alloy alternates, and modify geometries to reduce production costs without compromising part function.

• Dedicated Clean Machining Environment: Cross-contamination from carbon steel or iron particles can cause localized rust spots on aluminum components. Look for factories with dedicated aluminum machining lines and controlled cleaning areas.

• Flexible Scaling (Prototyping to Mass Production): Medical device development requires extensive prototyping phases for clinical trials before entering mass production. Your chosen partner must be agile enough to handle low-volume prototype runs (1–10 parts) and scale efficiently up to high-volume manufacturing (tens of thousands of units).

Conclusion: Partner with a Premier Aluminum Customization Factory

Medical device aluminum alloy customization demands specialized expertise, precise equipment calibration, and strict quality control protocols. By understanding the mechanical profiles of grades like 6061 and 7075, deploying multi-axis CNC machining, and applying resilient medical-grade anodized finishes, manufacturers can deliver components that meet the rigorous performance requirements of modern healthcare.
